AFSC Eastern Bering Sea

# Get rid of memory limits -----------------------------------------------------
options(future.globals.maxSize = 1 * 1024^4) # Allow up to 1 TB for globals

# Install Libraries ------------------------------------------------------------

# Here we list all the packages we will need for this whole process
# We'll also use this in our works cited page.
PKG <- c(
  "surveyresamplr",
  "dplyr",
  "tidyr",
  "purrr",
  "ggplot2",
  "future.callr",
  "flextable",
  "sdmTMB"
)

pkg_install <- function(p) {
  if (!require(p, character.only = TRUE)) {
    install.packages(p)
  }
  require(p, character.only = TRUE)
}
base::lapply(unique(PKG), pkg_install)
#> Loading required package: surveyresamplr
#> Loading required package: dplyr
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
#> Loading required package: tidyr
#> Loading required package: purrr
#> Loading required package: ggplot2
#> Loading required package: future.callr
#> Loading required package: future
#> Loading required package: flextable
#>
#> Attaching package: 'flextable'
#> The following object is masked from 'package:purrr':
#>
#>     compose
#> Loading required package: sdmTMB
#> [[1]]
#> [1] TRUE
#>
#> [[2]]
#> [1] TRUE
#>
#> [[3]]
#> [1] TRUE
#>
#> [[4]]
#> [1] TRUE
#>
#> [[5]]
#> [1] TRUE
#>
#> [[6]]
#> [1] TRUE
#>
#> [[7]]
#> [1] TRUE
#>
#> [[8]]
#> [1] TRUE

# Set directories --------------------------------------------------------------
wd <- paste0(here::here(), "/vignettes/")
dir_out <- paste0(wd, "output/")
dir_final <- paste0(dir_out, "EBS_0results/")

Run scenarios

### Define study species -------------------------------------------------------

spp_list <- data.frame(
  srvy = "EBS",
  common_name = c(
    "walleye pollock", "snow crab", "Pacific cod",
    "red king crab", "blue king crab",
    "yellowfin sole", "Pacific halibut",
    "Alaska plaice", "flathead sole", "northern rock sole", "arrowtooth flounder"
  ),
  species_code = as.character(c(
    21740, 68580, 21720,
    69322, 69323,
    10210, 10120,
    10285, 10130, 10261, 10110
  )),
  filter_lat_lt = NA,
  filter_lat_gt = NA,
  filter_depth = NA,
  model_fn = "total_catch_wt_kg ~ 0 + factor(year) + bottom_temperature_c",
  model_family = "delta_gamma",
  model_anisotropy = TRUE,
  model_spatiotemporal = "iid, iid"
) |>
  dplyr::mutate(
    file_name = gsub(pattern = " ", replacement = "_", x = (tolower(common_name)))
  )

### Load survey data -----------------------------------------------------------

# source(paste0(wd, "code/data_dl_ak.r"))

load(file = paste0(wd, "/data/noaa_afsc_catch.rda"))
catch <- noaa_afsc_catch |> dplyr::filter(srvy == "EBS")

### Load grid data -------------------------------------------------------------

load(paste0(wd, "grids/noaa_afsc_ebs_pred_grid_depth.rdata"), verbose = TRUE)

#### Add temperature: Coldpool temperature data
# Data that varies over space and time (bottom temperature)
# Here, bottom temperature, and thereby the cold pool extent, have been show to drive the distribution of many species. This is especially true for walleye pollock.
# For this we are going to lean on our in-house prepared validated and pre-prepared [{coldpool} R package](https://github.com/afsc-gap-products/coldpool) (S. Rohan, L. Barnett, and N. Charriere). This data interpolates over the whole area of the survey so there are no missing data.
crs_latlon <- "+proj=longlat +datum=WGS84" # decimal degrees
grid_yrs <-
  dplyr::bind_cols(
    pred_grid_depth[, c("longitude_dd", "latitude_dd", "depth_m")],
    terra::unwrap(coldpool::ebs_bottom_temperature) |>
      terra::project(crs_latlon) |>
      terra::extract(pred_grid_depth[, c("longitude_dd", "latitude_dd")])
  )
grid_yrs <- grid_yrs |>
  tidyr::pivot_longer(
    names_to = "year",
    values_to = "bottom_temperature_c",
    cols = names(grid_yrs_temperature)[4:ncol(grid_yrs_temperature)]
  )
save(grid_yrs_depth_temperature, file = paste0("grids/grid_yr_temperature/noaa_afsc_ebs_pred_grid_depth_temperature.rdata"))

# # test you extracted correctkt
# ggplot(data = grid_yrs |>
#          dplyr::filter(year %in% c(2022:2024)),
#        mapping = ggplot2::aes(x = longitude_dd, y = latitude_dd, color = bottom_temperature_c)) +
#   geom_point() +
#   facet_wrap(facets = "year")

### Variables ------------------------------------------------------------------

srvy <- "EBS"
seq_from <- 0.2
seq_to <- 1.0
seq_by <- 0.2
tot_dataframes <- 13
replicate_num <- 3

### Run ------------------------------------------------------------------------

purrr::map(
  1:nrow(spp_list),
  ~ clean_and_resample(spp_list[.x, ],
    catch, seq_from, seq_to, seq_by,
    tot_dataframes, replicate_num, grid_yrs, dir_out,
    test = TRUE
  )
)

### Plot indices ---------------------------------------------------------------

out <- plot_results(srvy = srvy, dir_out = dir_out, dir_final = dir_final)

out$plots
#> $index_boxplot_log_biomass

#>

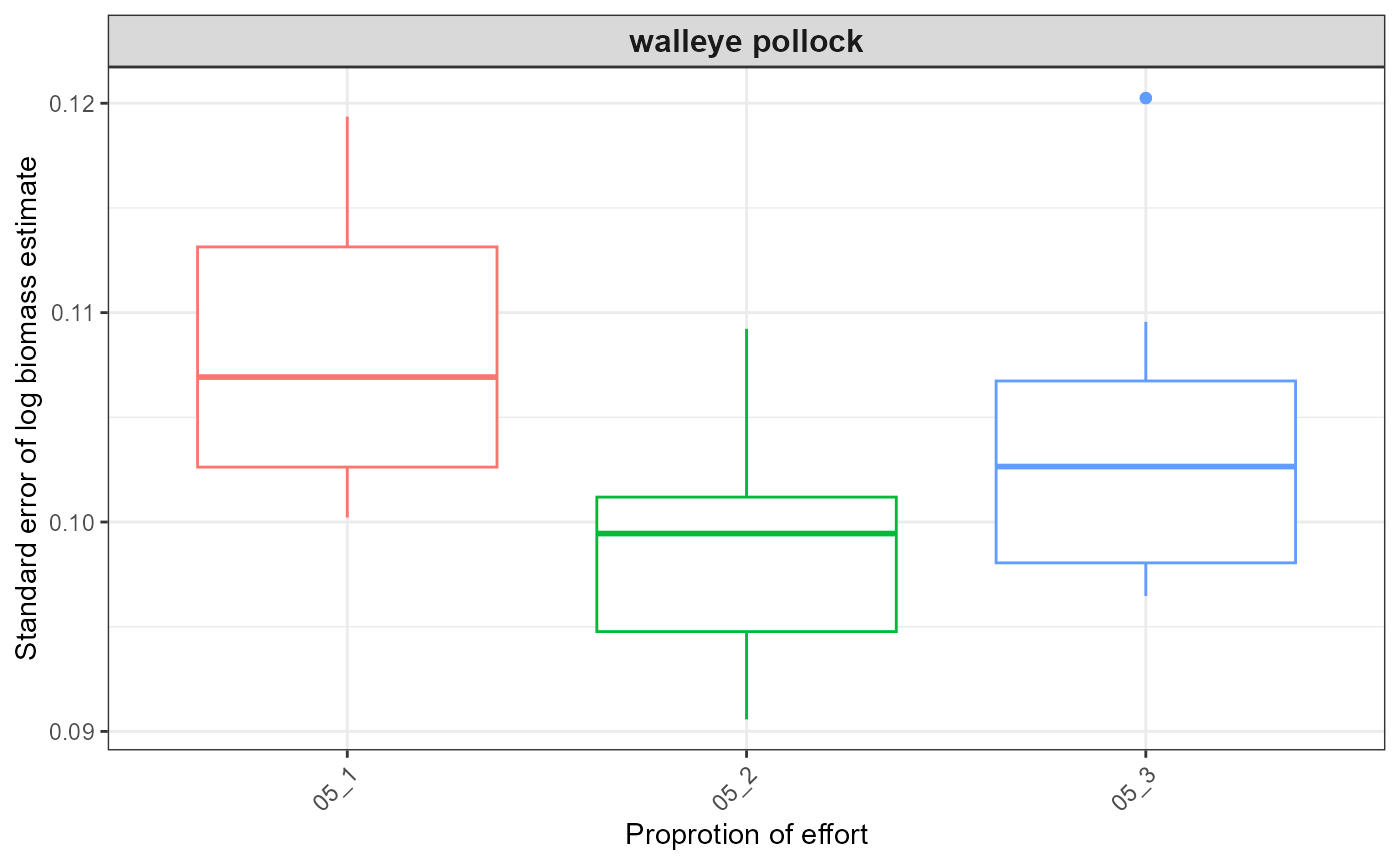

#> $index_boxplot_log_biomass_SE

#>

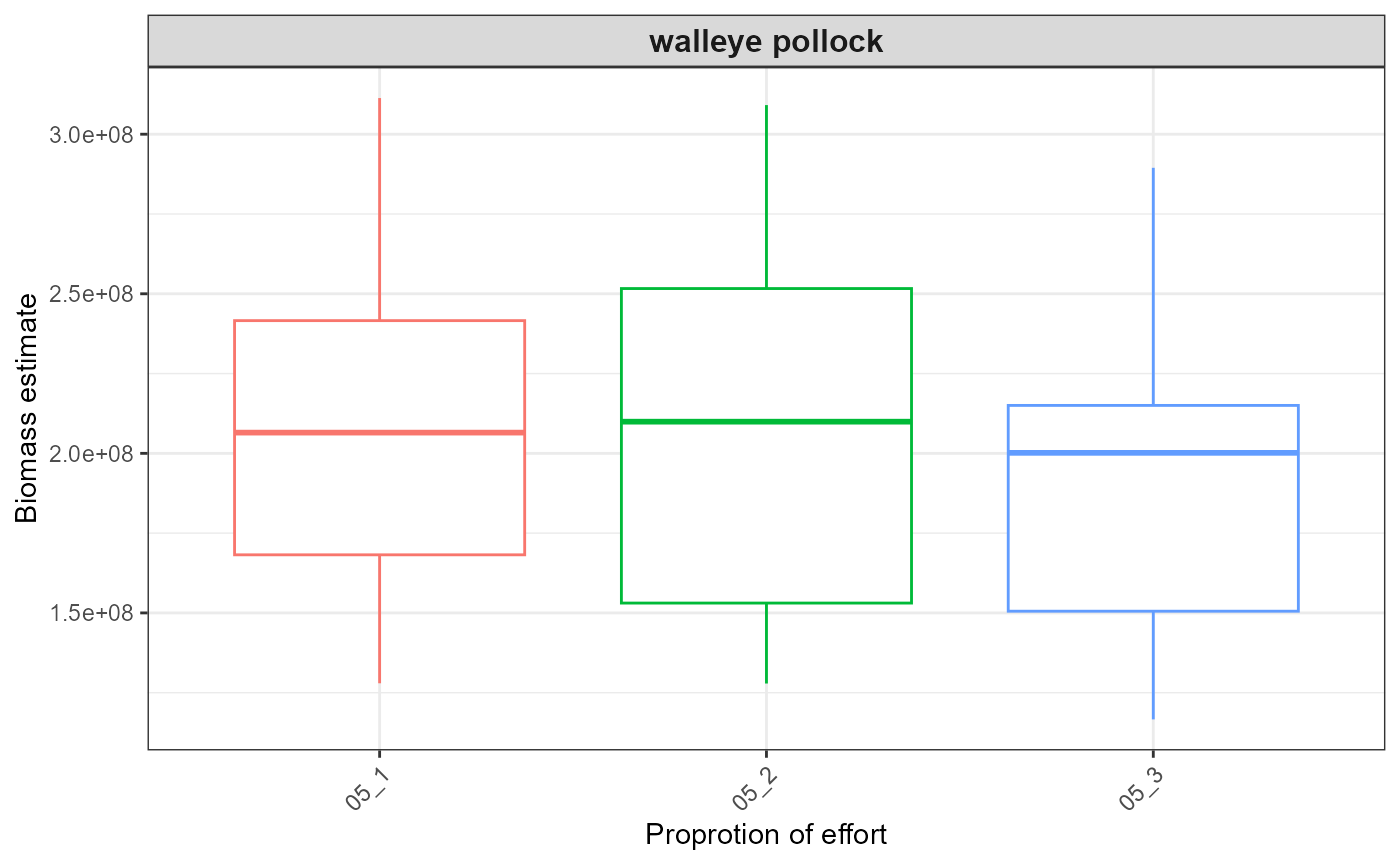

#> $index_boxplot_biomass

#>

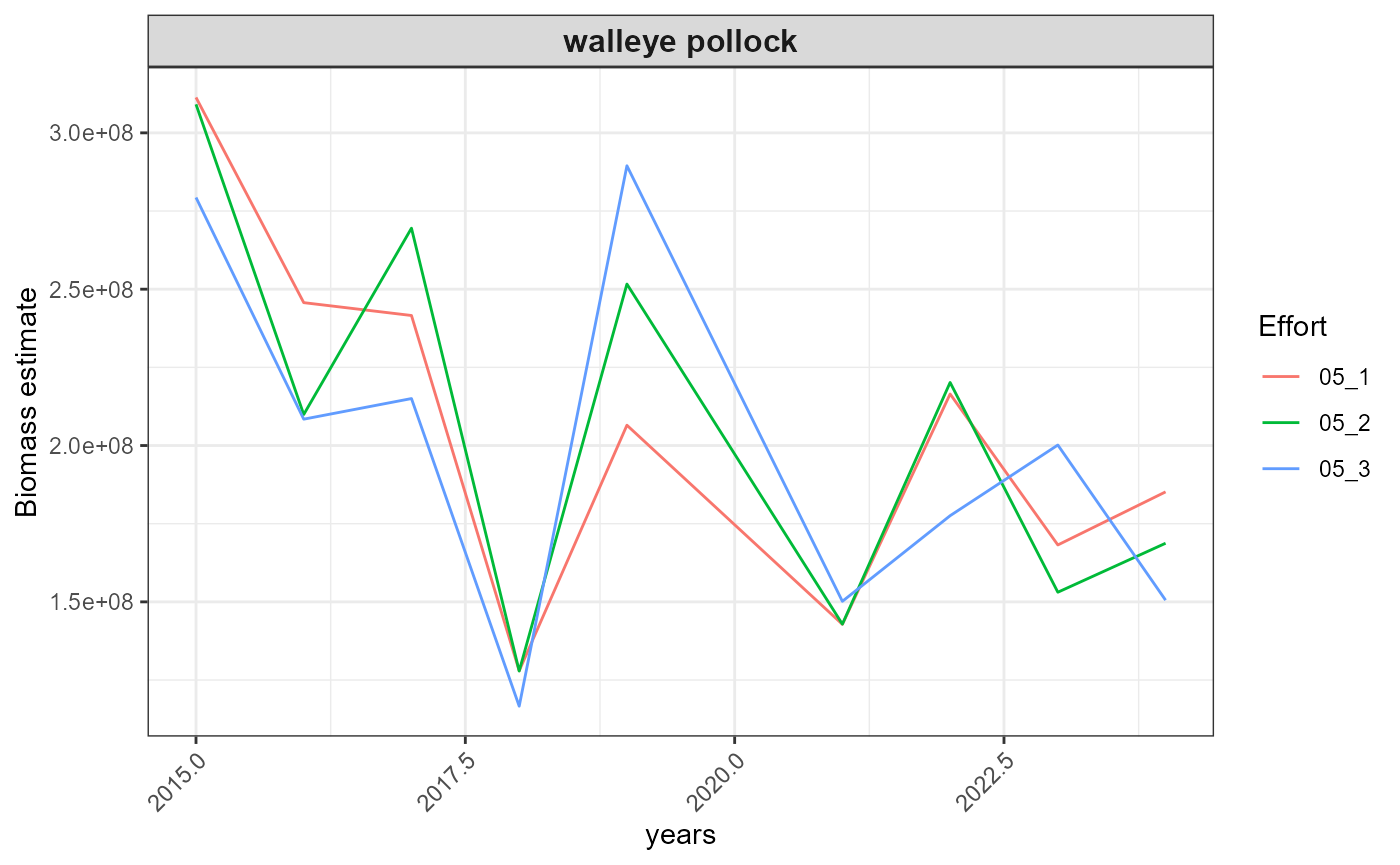

#> $index_timeseries_biomass

Parameter output:

i <- 1
print(names(out$tables)[i])
#> [1] "fit_df"
head(out$tables[i][[1]]) |>
  flextable::flextable()

X.5	X.4	X.3	X.2	X.1	X	srvy	common_name	file_name	species_code	filter_lat_lt	filter_lat_gt	filter_depth	model_fn	model_family	model_anisotropy	model_spatiotemporal	effort	term	estimate	std.error	conf.low	conf.high
1	1	1	1	1	1	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	factor(year)2015	19.77117	1,391.123	-2,706.781	2,746.323
2	2	2	2	2	2	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	factor(year)2016	19.90634	1,384.990	-2,694.625	2,734.437
3	3	3	3	3	3	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	factor(year)2017	19.86007	1,340.321	-2,607.120	2,646.840
4	4	4	4	4	4	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	factor(year)2018	19.80071	1,454.167	-2,830.315	2,869.916
5	5	5	5	5	5	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	factor(year)2019	20.11844	1,272.466	-2,473.869	2,514.106
6	6	6	6	6	6	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	factor(year)2021	19.71943	1,278.253	-2,485.611	2,525.050

i <- 1 + i
print(names(out$tables)[i])
#> [1] "fit_pars"
head(out$tables[i][[1]]) |>
  flextable::flextable()

X.5	X.4	X.3	X.2	X.1	X	srvy	common_name	file_name	species_code	filter_lat_lt	filter_lat_gt	filter_depth	model_fn	model_family	model_anisotropy	model_spatiotemporal	effort	term	estimate	std.error	conf.low	conf.high
1	1	1	1	1	1	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	range	3.7298099	3,393.6903	0	Inf
2	2	2	2	2	2	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	sigma_O	0.1812892	140.5073	0	Inf
3	3	3	3	3	3	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	sigma_E	0.3717503	336.2267	0	Inf
4	4	4	4	4		EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_2	range	2.8284007
5	5	5	5	5		EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_2	sigma_O	0.2820909
6	6	6	6	6		EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_2	sigma_E	0.2820909

i <- 1 + i
print(names(out$tables)[i])
#> [1] "fit_check"
head(out$tables[i][[1]]) |>
  flextable::flextable()

X.5	X.4	X.3	X.2	X.1	X	srvy	common_name	file_name	species_code	filter_lat_lt	filter_lat_gt	filter_depth	model_fn	model_family	model_anisotropy	model_spatiotemporal	effort	hessian_ok	eigen_values_ok	nlminb_ok	range_ok	gradients_ok	se_magnitude_ok	se_na_ok	sigmas_ok	all_ok
1	1	1	1	1	1	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	FALSE	TRUE	TRUE	TRUE	TRUE	FALSE	TRUE	TRUE	FALSE
2	2	2	2	2		EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_2	FALSE	TRUE	TRUE	TRUE	FALSE	FALSE	TRUE	TRUE	FALSE
3	3	3	3			EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_3	FALSE	TRUE	TRUE	TRUE	FALSE	FALSE	TRUE	TRUE	FALSE
4	4	4				EBS	walleye pollock	simple_walleye_pollock	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	FALSE	TRUE	TRUE	TRUE	TRUE	FALSE	TRUE	TRUE	FALSE
5	5					EBS	walleye pollock	simple_walleye_pollock	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_2	FALSE	TRUE	TRUE	TRUE	FALSE	FALSE	TRUE	TRUE	FALSE
6						EBS	walleye pollock	simple_walleye_pollock	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_3	FALSE	TRUE	TRUE	TRUE	FALSE	FALSE	TRUE	TRUE	FALSE

i <- 1 + i
print(names(out$tables)[i])
#> [1] "index"
head(out$tables[i][[1]]) |>
  flextable::flextable()

X.5	X.4	X.3	X.2	X.1	X	srvy	common_name	file_name	species_code	filter_lat_lt	filter_lat_gt	filter_depth	model_fn	model_family	model_anisotropy	model_spatiotemporal	effort	year	est	lwr	upr	log_est	se	type
1	1	1	1	1	1	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	2,015	311,329,658	254,290,109	381,163,688	19.55636	0.1032552	index
2	2	2	2	2	2	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	2,016	245,697,312	201,795,592	299,150,087	19.31961	0.1004330	index
3	3	3	3	3	3	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	2,017	241,587,105	198,504,083	294,020,799	19.30274	0.1002163	index
4	4	4	4	4	4	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	2,018	127,954,658	101,264,147	161,680,073	18.66719	0.1193611	index
5	5	5	5	5	5	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	2,019	206,496,853	166,663,257	255,850,936	19.14580	0.1093438	index
6	6	6	6	6	6	EBS	walleye pollock	walleye_pollock_test	21,740				total_catch_wt_kg ~ 0 + factor(year)	delta_gamma	TRUE	iid, iid	05_1	2,021	142,822,421	115,820,004	176,120,214	18.77711	0.1069228	index
